Thor

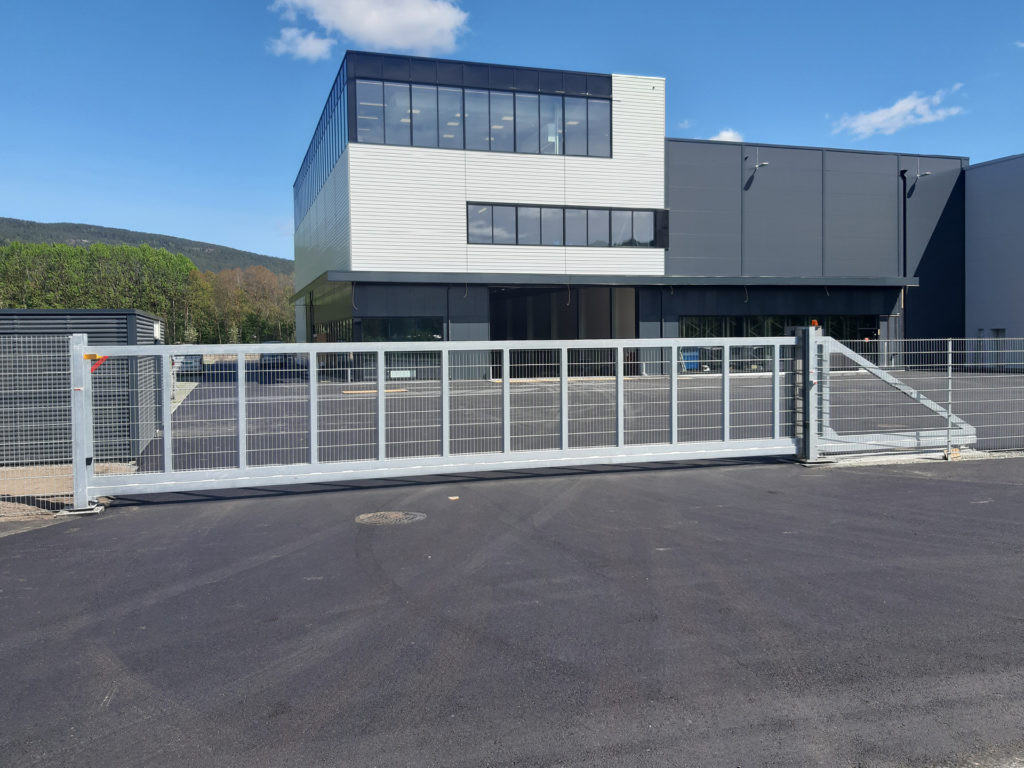

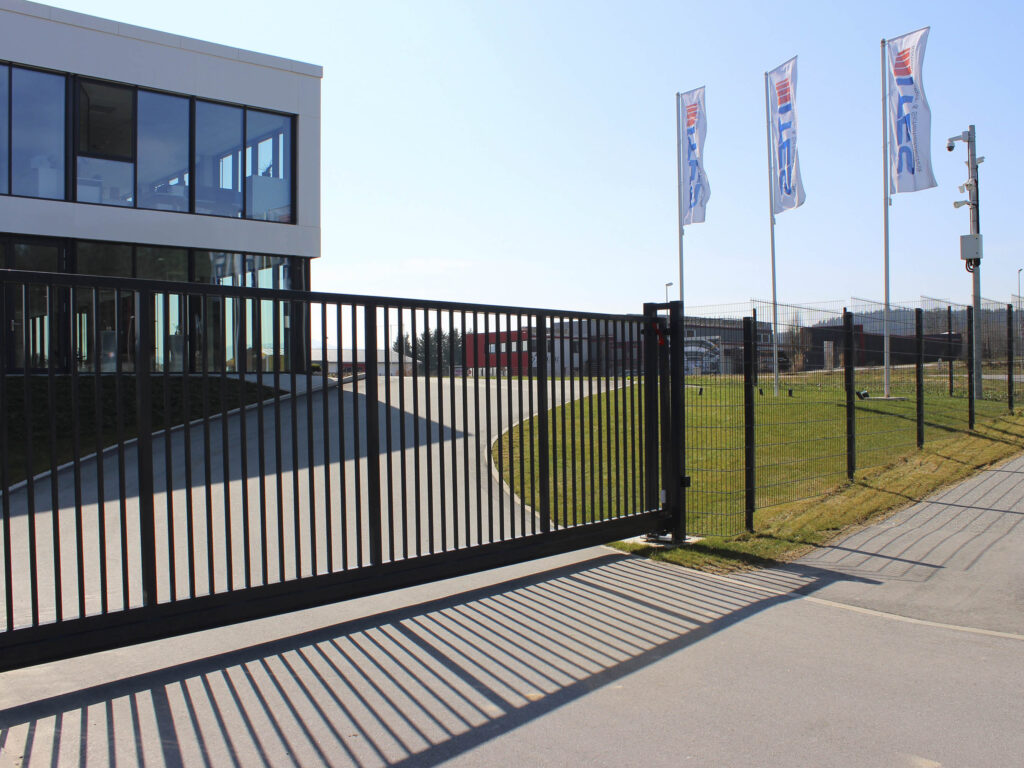

Cantilever sliding gate for industrial applications.
Construction
The wing
The Thor cantilever sliding gate has been developed for the Nordic climate. It is a fully welded construction with an under beam made of specific C-profile. The welded gate frame consists of a square or rectangular horizontal tube and vertical square tubes. The infill consists of welded vertical square tubes with a maximum distance between the bars of 100 mm. Prepared for 3 lines of barbed wire as an option. Dimensions: see Technical Description.
The guide post and end post
The standard double sided end post is made of square tube and is equipped with a catcher and base to guide and support the wing when the gate is closed.
Guide post for automatic gates is equipped with coated steel cabinet to protect all electric connections and electronic devices
Guide roller sets and guide rollers
The wing is supported and guided by 2 roller sets with ball bearings, integrated in the underbeam. One roller set is mounted on the base plate of the guide post and the second independent roller set is installed at the rear end of the foundation. Both roller sets support the underbeam in order to guarantee perfect guiding of the gate wing.
Lateral guiding of the wing is done by 2 horizontal guide rollers with ball bearings; guide on the top of the guide post.
All rollers are made of high quality Polyamide. The material guarantees longevity and silent running of the gate wing.
Durability
The gate posts are manufactured in hot dip galvanised + RAL coated, high grade steel (in accordance with EN ISO 1461) and the gate wings are manufactured in RAL powder coated aluminum. The construction is very robust and the gates are developed for the Nordic climate.
Coating
Posts and wing are hot dip galvanised or additionally powder coated. The standard colors are RAL 9007, RAL 9005, RAL 6005. Other colours are available on request. For automatic versions, the cabinet for electronic devices is powder coated in standard colour RAL 9007. Hot Dip Galvanised Hot dip galvanised according to EN-ISO 1461. Powder coating Posts and wing can be polyester powder coated as an option. Thickness of powder coating: between 60 μm and 80 μm.
Mode of operation
Motorized with Halsang Sleipner control, incl frequency modulator with soft start and stop for optimal operation. Fully pre-assembled when delivered, allowing an easy and fast installation on site. Steering and electronics installed in a full height cabinet. TÜV approved and in accordance
with EN 13241-1. For manual versions, the gates are equipped with a special lock for sliding gates made by Locinox.
Features
- Completely welded steel construction in HDG version;
- Square tube infill as standard 25x25x2mm
- Easy access to the cabinet (coated in RAL 9007) for service and maintenance
- Extra external support roller for openings above 6m
- Max standard opening width 12m
- Max standard height 2.4m
- TÜV approved and in accordance with EN 13241-1
- Other dimensions on request
Technical description
Power supply voltage
230V AC, 50 Hz
Power consumption
1000 W
Current
10A
Feedback signal Potential free contact
– no/nc
Opening signal Signal
(max. 1 sec)
Operation environment
-25 to +50 C
Options
- Overclimbing protection – toothed strip on top of the leaf
- Halsang Monitoring system
- Fencing connection on posts
- Induction loop detectors
- Powder coated in RAL paint colours.
- Special infill upon request
- Key switch
- Traffic light
- Illumination of free passage
- Others
