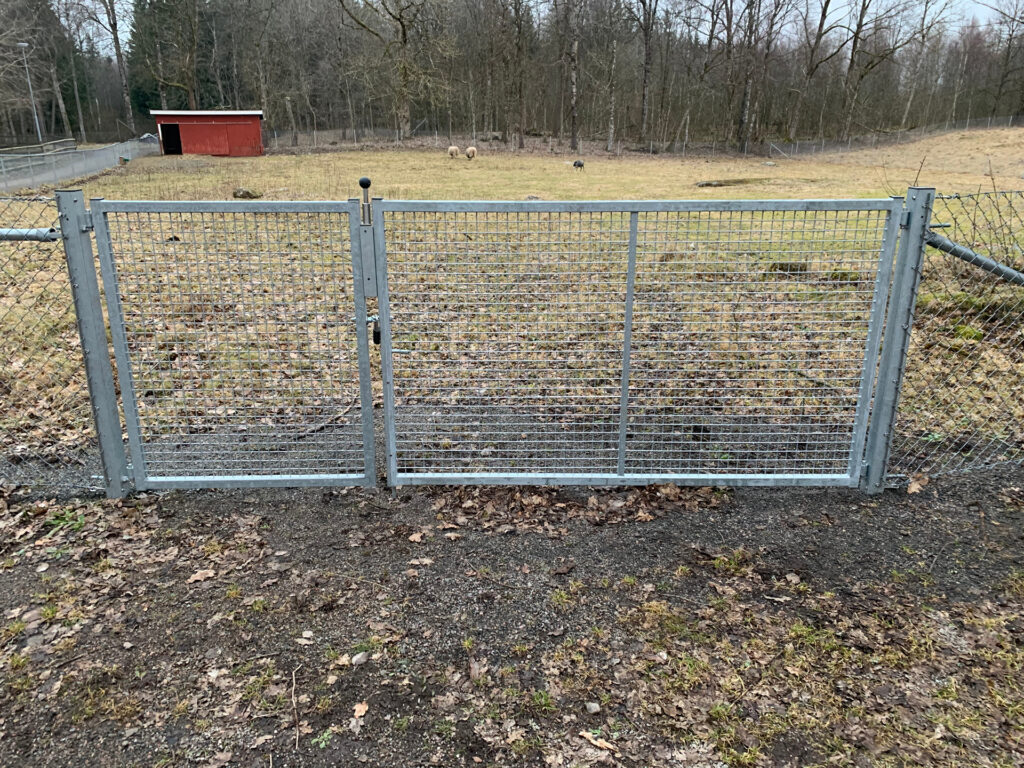

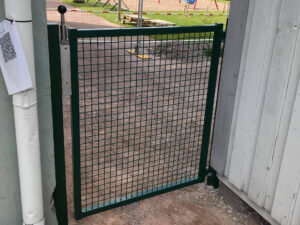

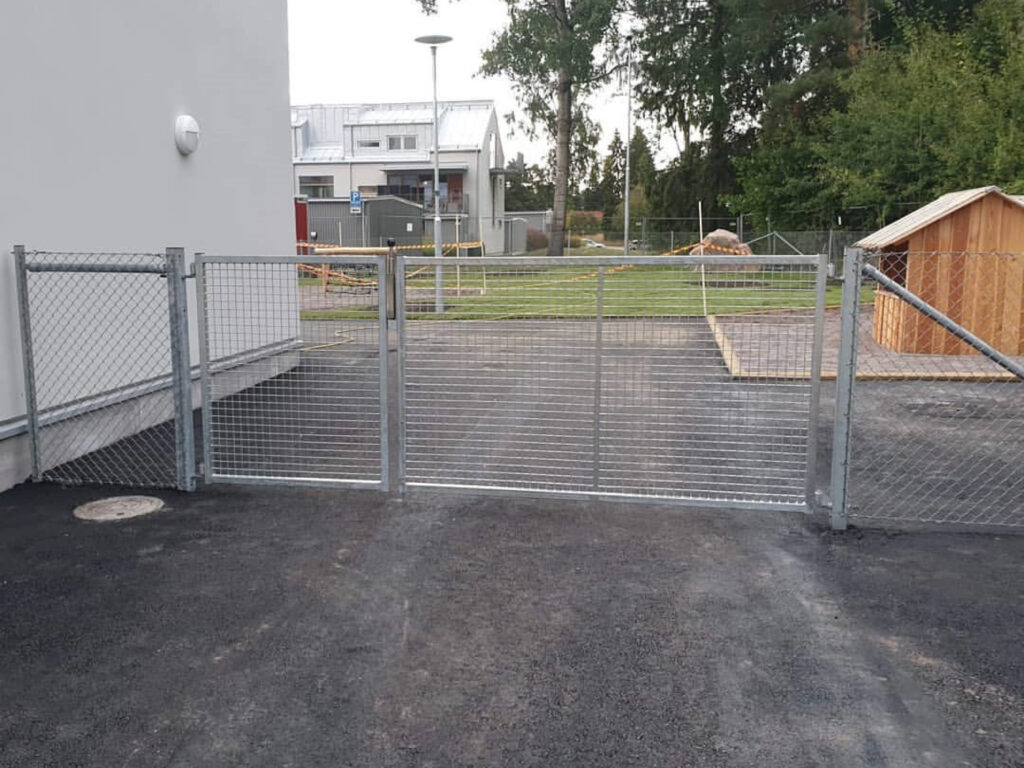

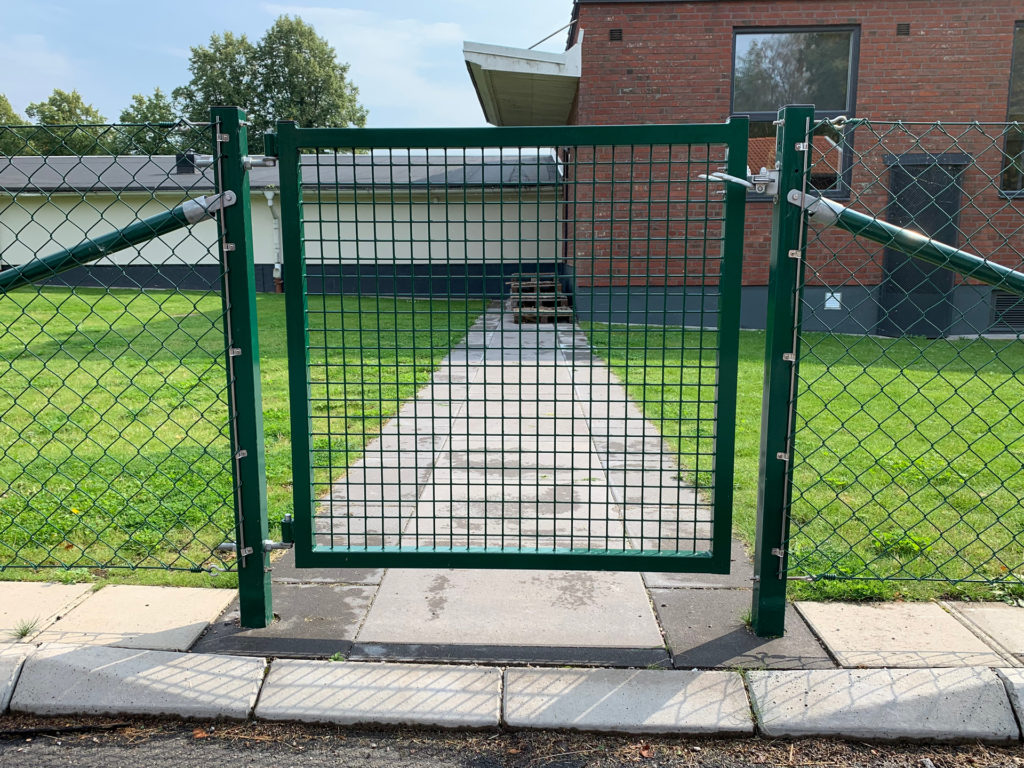

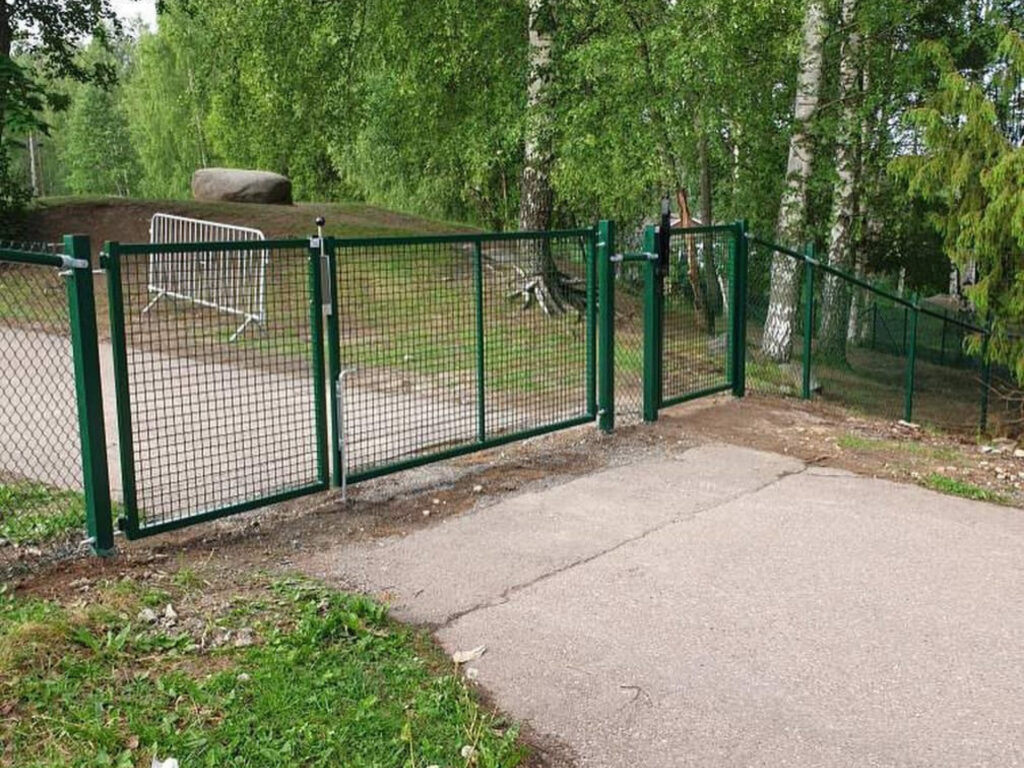

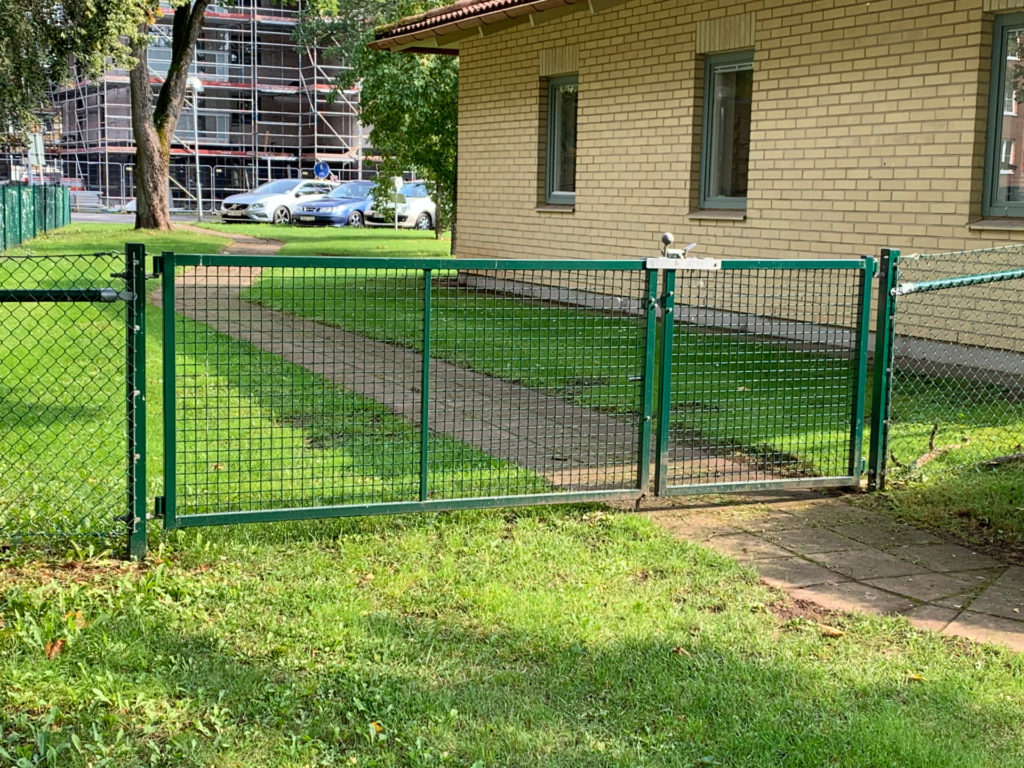

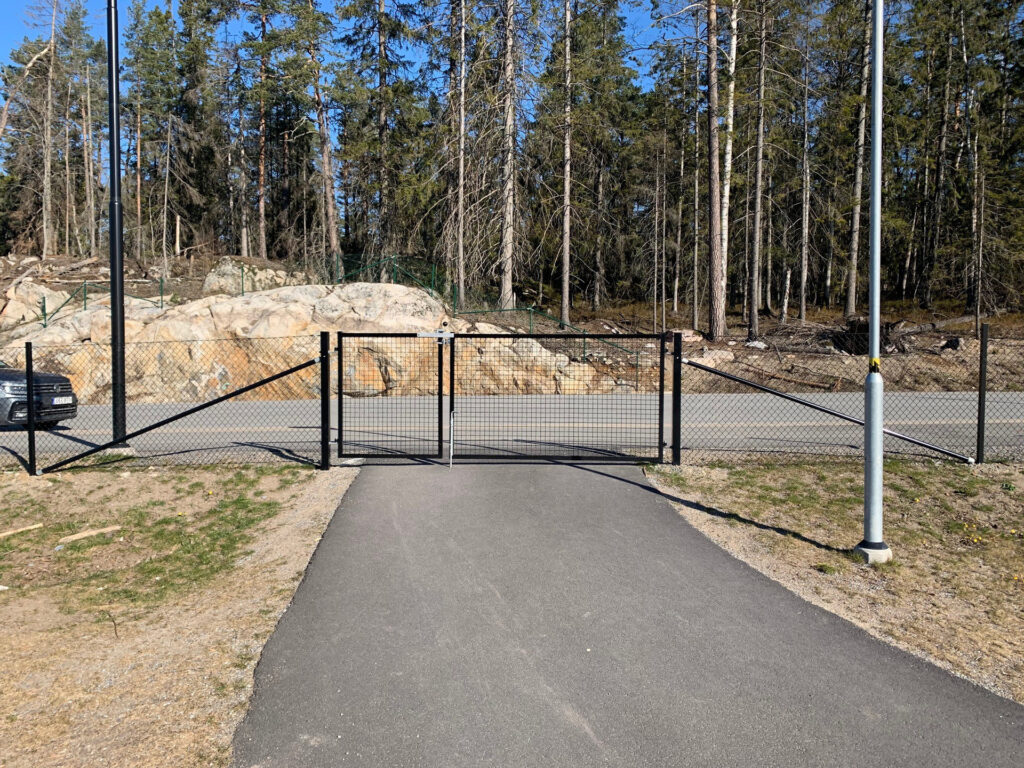

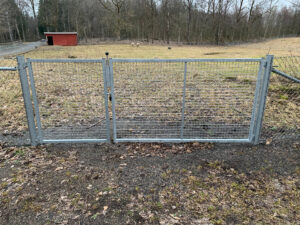

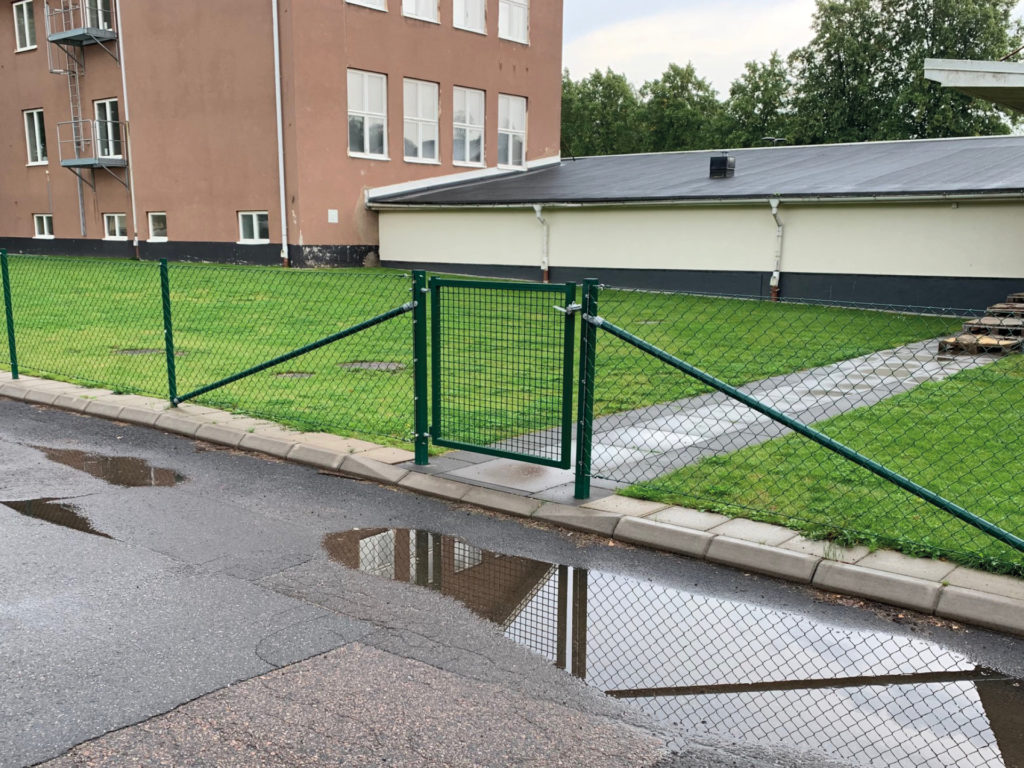

Swing Gate Villa

Swing gates for private house, day care centers etc.


Gate wing

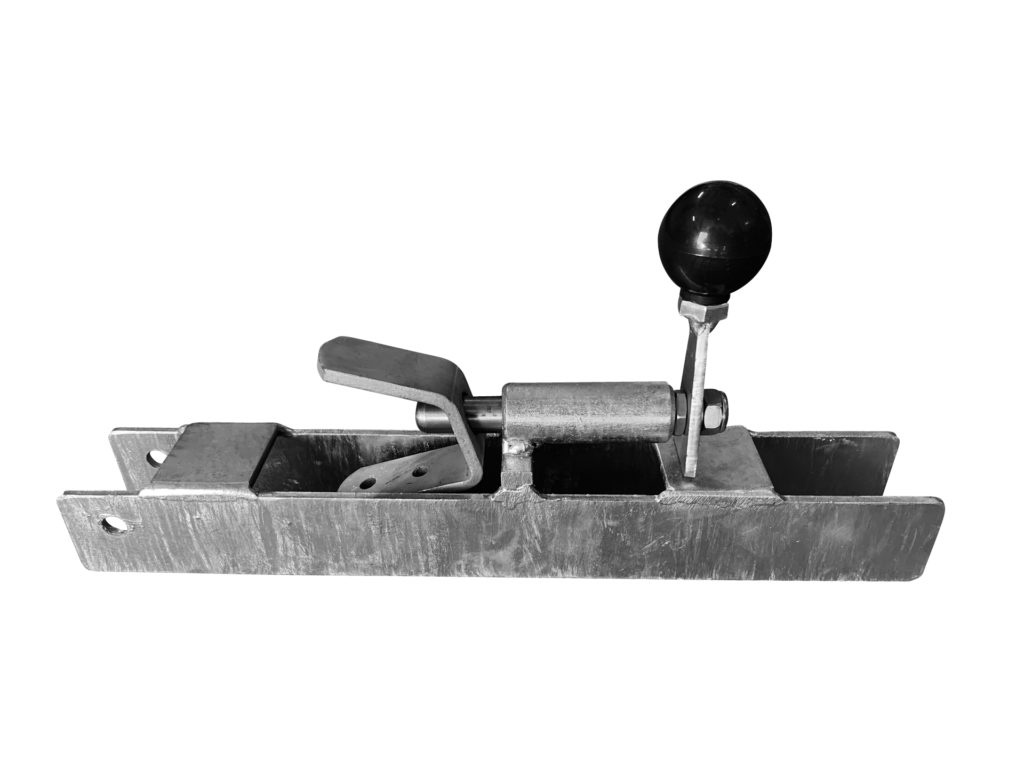

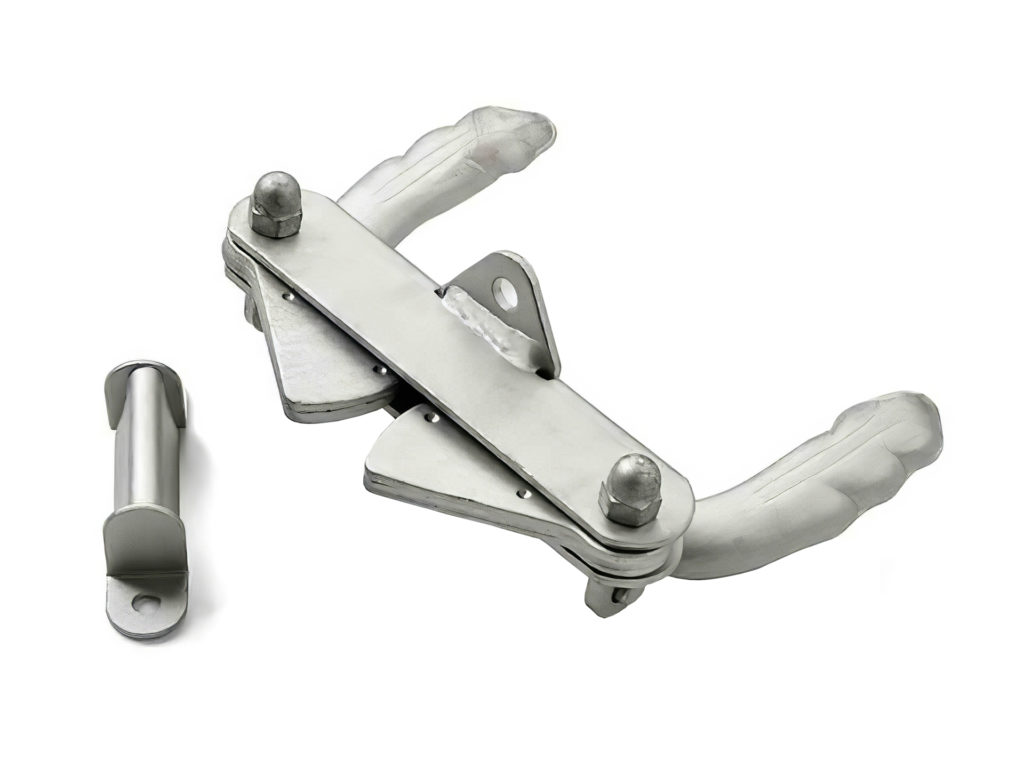

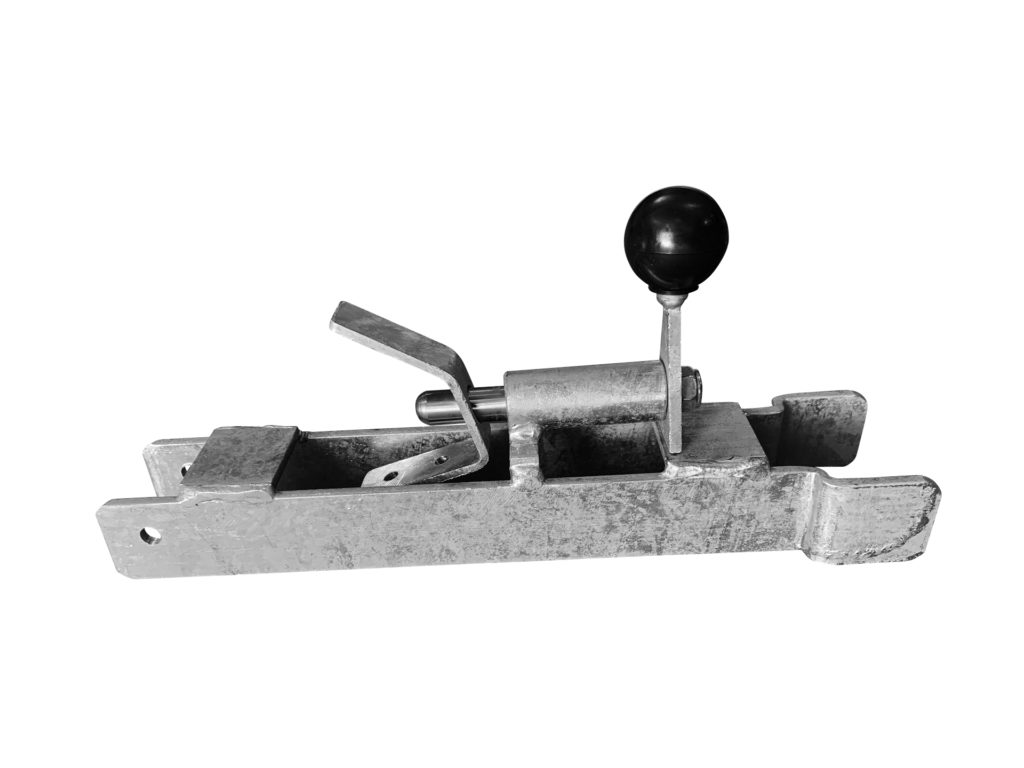

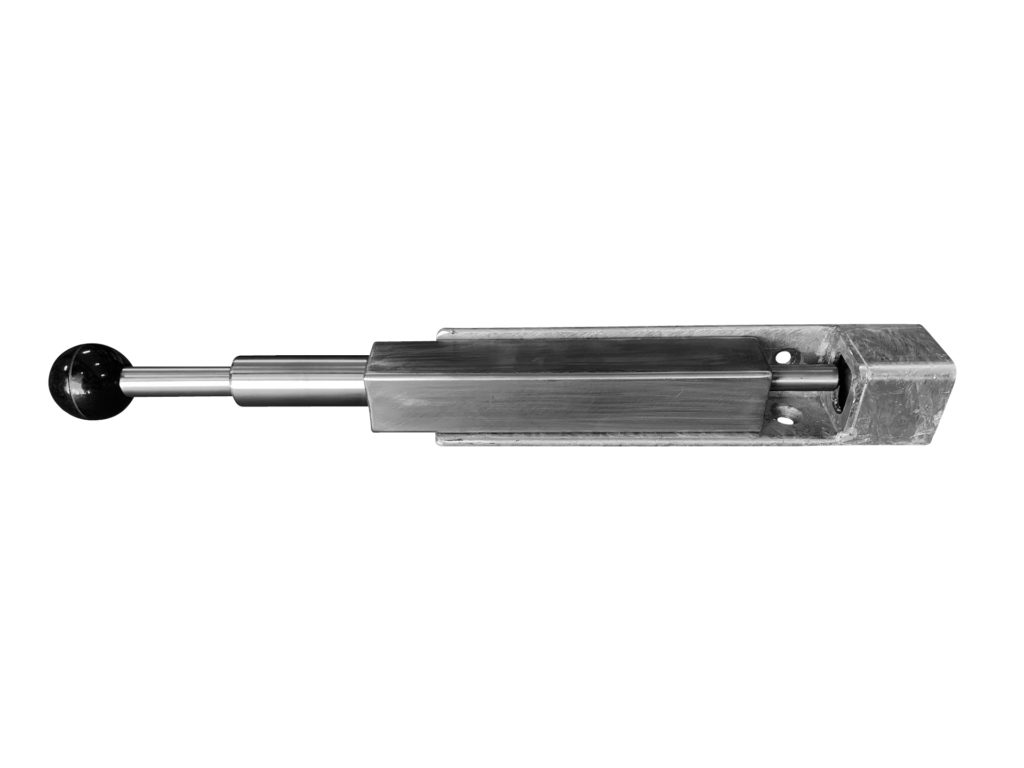

The VILLA swing gates have been developed for the Nordic climate and market. It is produced in a fully welded steel construction, hot dip galvanized execution or additional RAL coated as standard. The gate infill consists of welded mesh – 40x40x4mm. The wings can cary different lock system, see lock system below.

Gate post
The gate posts are delivered for standard concrete installation, Gate posts with base plate is optional. Post profile in 60x60x2mm and 70x70x2mm.

Posts and wing are hot dip galvanized or additionally powder coated. The standard colors are RAL 6005, RAL 6013 and RAL 9005. Other colors are available on request.
– Hot Dip Galvanized Hot dip galvanized according to EN-ISO 1461.
– Powder coating Posts and wings are optionally polyester powder coated.
Thickness of coating: between 60 μm and 80 μm.


  • Completely welded steel construction
    in HDG execution
  • Welded mesh infill as standard 40x40x4 mm
  • Gate wing profile 40x40x2 mm
  • Available standard heights: 800 mm, 1000 mm, 1200 mm and 1500 mm
  • Gate wings and gates post can be ordered separately


  • Coated execution in other RAL color
  • Special infill upon request
  • Other dimensions on request
  • Gate posts with base plates
